| Tên thương hiệu: | Sihovision |
| Số mẫu: | SC156 |
| MOQ: | 1 mảnh |
| giá bán: | Có thể đàm phán |
| Chi tiết bao bì: | 1 cái/ctn 51×14×39cm, 7kg |
| Điều khoản thanh toán: | T/T, PayPal, L/C, D/A, D/P, Liên minh phương Tây, Moneygram |

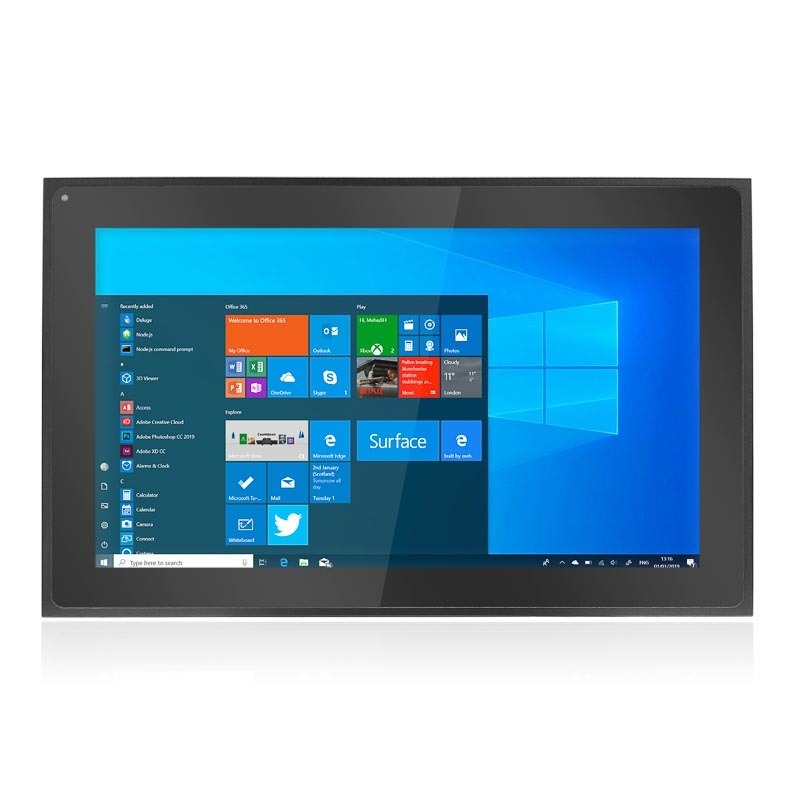

15.6 Inch All-in-One Panel PC Celeron J4125 Capacitive Touchscreen Industrial-grade 1000 Nits LCD Display
Key Features Explained:
1. Durable Construction
2. Display Quality
3. Sunlight Readability
4. Extreme Temperature Performance
5. Reliability
Specification
| Model:SC156 | |
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless |
| Chipset | Cemini lake |
| Memory | 4GB DDR4 (8gb optional) |
| Storage | 128GB SSD (256GB, 512GB optional) |
| Graphics | Intel UHD Graphics 600 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | windows 10 pro 64bit |
| Operation System | Support Windows 8/10, Linux, Ubuntu, Debian, etc. |
| External I/O Ports | |
| USB | 2xUSB3.0, 2×USB2.0 |
| LAN | 1×RJ45 |
| COM | 2×RS232 (One of them can be RS485) |
| Video Outputs | 1×VGA, 1×HDMI |
| Audio | 1 × 3.5mm Line-out, 1 × 3.5mm Line-in |
| Other | 1×Power on/off button |
| LCD panel | |
| Panel size | 15.6" |
| Display active area | 343.54(W)×192.83(H) mm /13.525 in × 7.591 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PMW software adjustment(Light sensor for auto dimming optional) |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V (DC 36V Optional) |
| Power consumption | ≤45W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm |
| IP grade | Front panel IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | operating: -20 °C(-4℉) to 70°C(158℉), storage: -30 °C(-22℉) to 80°C(176℉) |
| Relative humidity | Up to 99% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product Weight | Net weight 5.2kg (11.464 lb) Gross weight 7 kg (15.432 lb) |
| Product Dimension | 402.9×249.9×63mm (15.862×9.838×2.480 in ) |
| Packing info | 1pcs/ctn 51×14×39cm (20.078×5.511×15.354 in ) 7 kg (15.432 lb) 2pcs/ctn 51×30×39cm (20.078×11.811×15.354 in ) 14 kg (30.864 lb) |
| Accessories | Power adapter, power cord, Wall mounting brackets |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Advantages
1. Working temperature range is -10°C to 60°C.
2. Industrial LCD panel is wide viewing angle, high nits and true color.
3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.
4. High performance motherboard, 7x24 continuous operation.
5. Symmetric design can be utillized in portrait mode with style.
6. Heat sink in back case great for heat dissipation and beatiful appearance.
7. Working voltage is wide range 9-36V, suitable for various applications.
Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
